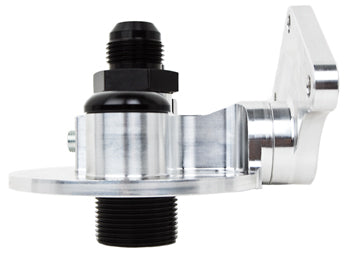

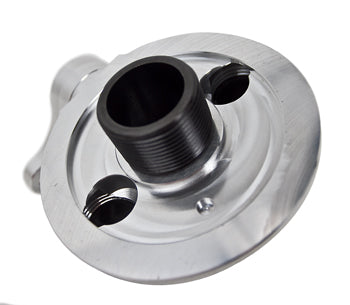

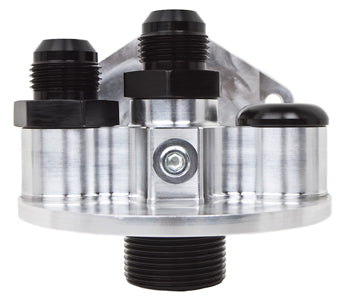

Large Diameter Remote Filter Mounts

Machined from billet 6061-T6 aluminium for durability. Ports are machined for free flow of oil. These remote filter adapters feature -12 AN ports on the inlets and outlets. Fittings are included.

1 1/2 - 12" Thread Filters

Fram HP6A , Moroso 22465, WIX 51222R

09-1351 -10 AN Fittings - Firewall Mount
09-1352 -12 AN Fittings - Firewall Mount
09-1371 -10 AN Fittings - 1 1/4" Tube Mount
09-1372 -12 AN Fittings - 1 1/4" Tube Mount
09-1373 -10 AN Fittings - 1 3/8" Tube Mount
09-1374 -12 AN Fittings - 1 3/8" Tube Mount
09-1375 -10 AN Fittings - 1 1/2" Tube Mount
09-1376 -12 AN Fittings - 1 1/2" Tube Mount
09-1377 -10 AN Fittings - 1 3/4" Tube Mount
09-1378 -12 AN Fittings - 1 3/4" Tube Mount

1 1/2 - 16" Thread Filters

AC, Hastings, Motorcraft, Purolator

09-1361 -10 AN Fittings - Firewall Mount
09-1362 -12 AN Fittings - Firewall Mount
09-1381 -10 AN Fittings - 1 1/4" Tube Mount
09-1382 -12 AN Fittings - 1 1/4" Tube Mount
09-1383 -10 AN Fittings - 1 3/8" Tube Mount
09-1384 -12 AN Fittings - 1 3/8" Tube Mount
09-1385 -10 AN Fittings - 1 1/2" Tube Mount
09-1386 -12 AN Fittings - 1 1/2" Tube Mount
09-1387 -10 AN Fittings - 1 3/4" Tube Mount
09-1388 -12 AN Fittings - 1 3/4" Tube Mount

Mount Brackets

09-1590 Mount Bracket 1 1/4" Tube

09-1591 Mount Bracket 1 3/8" Tube

09-1592 Mount Bracket 1 1/2" Tube

09-1593 Mount Bracket 1 3/4" Tube

09-1584 Mount Bracket-Small Mount Flange Mount

09-1594 Mount Bracket-Large Mount Flange Mount
