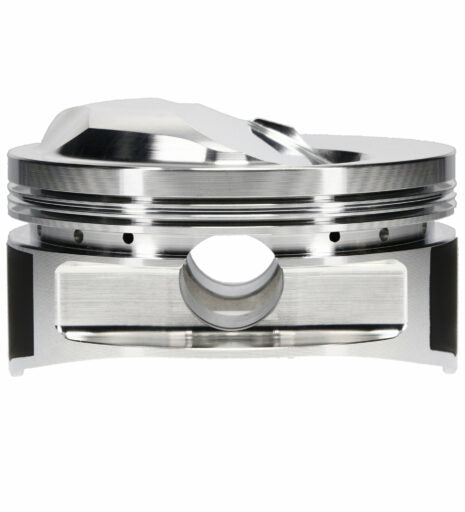

JE Piston Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC
JE Piston Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC
  • Load image into Gallery viewer, JE Piston Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC
  • Load image into Gallery viewer, JE Piston Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC

JE Piston Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC

Regular price
$137.50
Sale price
$137.50
Regular price
$243.75
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

JE Pistons Chevrolet Big Block Piston Kit – 4.310 In. Bore – 1.645 In. CH, 43.00 CC

SKU: 258277

467ci combo ~ 4.310" bore x 4.000" stroke x 6.135" rod

PRICE IS PER PISTON, QUANTITY 8 REQUIRED FOR BIG BLOCK CHEV ENGINE.

Individual pistons will be ordered in ex USA, approx 1-2 weeks from order date providing they have them in stock. Individual piston price surcharge applies.

JE, Chevrolet, Big Block Chevrolet, 4.310 in. Bore, 1.645 CD, Dome, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminium, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA

Notice: Product Images may differ from the actual product. Image may be a representation of this item.

Weight 16.800 lbs
Dimensions 26.000 × 12.000 × 6.000 in
Cylinder Head

OPEN CHAMBER

Bore Diameter

4.310 IN

Piston Head Type

Dome

Compression Height

1.645 IN

Piston Volume

43.00 CC

Piston Material

2618

Piston Quantity

8

Forging Type

Round

Piston Average Weight

625 GR

Ring Set Included

No

Top Compression Ring Thickness

0.0640 IN

Second Compression Ring Thickness

0.0640 IN

Oil Ring Thickness

0.188 IN

Wrist Pin Outer Diameter

0.990 IN

Wrist Pin Length

2.930 IN

Wrist Pin Wall Thickness

0.150 IN
