| Big Block I-Beam | ||||
| Description | Rod Journal | Typical Wt. | Part # | |
| 6.800 | 2.200 | 829g | U15116 | |

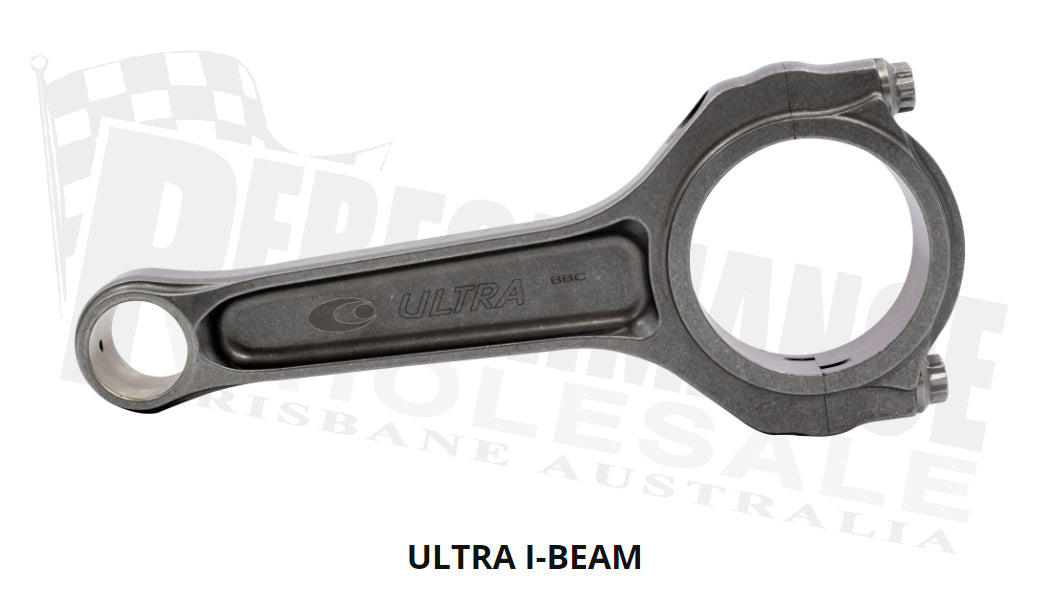

ULTRA I-BEAM
-
Ultra connecting rods are made entirely in the U.S.A. Every Ultra connecting rod is produced from specially formulated TimkenSteel 4330V steel. This material is then precision forged in Michigan and fully machined in our Fostoria, Ohio facility.
Many geometric nuances have been incorporated into the design of Ultra connecting rods. These design features enhance the Ultra against specific loads and stresses which are applied to connecting rods subjected to high load, high RPM applications. Ultra connecting rods are fastened by high alloy cap screws made specifically for severe duty service by ARP Inc. Produced with rolled threads, these unique bolts offer improved thread engagement for a smoother more consistent net clamping load. To eliminate deformation and extrusion only AMS 642 bronze alloy is used within the wrist pin housing bore.
Ultra I-Beams are available in our standard weight version for extreme duty racing applications of popular Big Block Chevy, Small Block Chevy, Chevy LS, Big Block Ford, Small Block Ford, RY45, Ford Modular, Nissan GTR, Buick 3.8, as well as lightweight versions for select SBC configurations. For superior clamping, a Custom Age bolt upgrade is available for all Callies I-Beam connecting rods.
