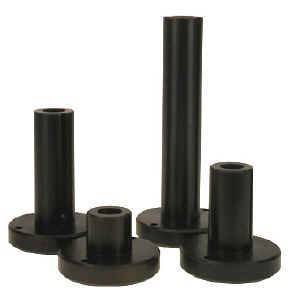

Standard Drive 1" Mandrels
Peterson's small and big block Chevrolet drive mandrels fit most applications. Precision machined from stress-proof steel or 6061 T6 aluminum these mandrels provide the precision and dependability racers demand.
Features
Aluminum
- 6061 T6 billet aluminum
- Black anodized for durability
- CNC machined for precision
- 3/16" Keyway on dampener side on SBC
- BBC Mandrels include roll pins
- 1/8" Keyway for pulleys
Steel
- Stress-Proof Steel
- Black oxided for durability
- CNC machined for precision
- 3/16" Keyway on dampener side on SBC
- BBC Mandrels include roll pins
- 1/8" Keyway for pulleys
Specifications
Small Block Chevy Mandrels
| Part # | Overall Length | Mandrel Length |
|---|---|---|
| Steel | ||
| 05-0701 | 2.387" | 1.245" |
| 05-0702 | 3.545" | 2.403" |
| 05-0703 | 4.392" | 3.250" |
| 05-0704 | 6.142" | 5.000" |
| Aluminum | ||
| 05-0706 | 3.545" | 2.403" |
| 05-0707 | 4.392" | 3.250" |
| 05-0708 | 6.142" | 5.000" |
Big Block Chevy Mandrels
| Part # | Overall Length | Mandrel Length |
|---|---|---|
| 05-0711 | 1.367" | .860" |
| 05-0712 | 2.330" | 1.830" |
| 05-0713 | 3.260" | 2.760" |
| 05-0714 | 5.500" | 5.000" |
Part Numbers
Small Block Chevy Mandrels
| Part # | Description |
|---|---|
| Steel | |
| 05-0701 | 1.250" Long |
| 05-0702 | 2.400" Long |
| 05-0703 | 3.250" Long |
| 05-0704 | 5.000" Long |
| Aluminum | |
| 05-0706 | 2.400" Long |
| 05-0707 | 3.250" Long |
| 05-0708 | 5.000" Long |
Big Block Chevy Mandrels
| Part # | Description |
|---|---|
| 05-0711 | .860" Long |
| 05-0712 | 1.830" Long |
| 05-0713 | 2.760" Long |
| 05-0714 | 5.000" Long |
