Jesel Belt Drives / Front Drives
The Original
BELT DRIVE SYSTEM
Patented High Torq Drive™ reinforced belt runs dry, spins with less friction than timing chains or gear drives and absorbs harmonics.
Kit hardware is all Grade 8 Allen and Torx™ head design.
Cam timing is externally adjustable.
2 Piece Upper Pulley is infinitely adjustable ±10°.
Solid Upper Pulley is adjustable ±8° in 2° increments.
Crank Pulley is heat-treated steel and incorporates a High Torq Drive™ tooth configuration.
Hard coated Billet Aluminium Upper Pulley features patented High Torq Drive™ tooth configuration.
Teflon® coated high vacuum cam and crank seals.
Accessories available to run distributor drives, fuel pumps or oil pumps off front of cam.
Smoother Than Gear Drives, More Reliable Than Chain Drives.
Front Drive Combos
For the engine builder planning on using a Camshaft Belt Drive as well as a Belt Driven Distributor, Jesel offers a Front Drive Combo which incorporates both units as one convenient part number. In addition to being an ordering convenience, the Front Drive Combo is easier on your budget as the units are discounted when bundled together. The combo can be ordered with either our Pro Series or Extreme Series distributors with or without the available Individual Cylinder Timing system. As with all Jesel distributor drive systems, a crank trigger type firing system as well as an external ignition box is required.
Distributor Drives
Jesel’s Belt Driven Distributor systems, a direct bolt-on accessory to our Camshaft Belt Drives, eliminates timing inaccuracies due to camshaft deflection and cam walk. A typical gear driven distributor running off the camshaft has the possibility of altering the initial ignition setting at high RPM due to the camshaft twisting from torsional loads. By driving the distributor drive directly off the camshaft pulley, ignition timing stays constant and will not deviate from the initial settings. Another benefit to using our Belt Driven Distributors is the ability to set the engine back further in the chassis without worrying about firewall or windshield interference. A crank trigger firing system along with an external ignition box is required for all Belt Driven Distributor systems.
Extreme Series Distributor Drive
Introduced in 2011, Jesel’s Extreme Series Distributor Drive System is designed to handle the high cylinder pressures experienced in Pro Stock and Pro-Mod type engines. This distributor drive features the MSD® 5” Pro-Cap to ensure accurate spark delivery and to reduce spark scatter frequently experienced in high cylinder pressure applications.
Pro Series Distributor Drive
Ideal for naturally aspirated engines, this drive features a Gates PowerGrip HTD belt and uses Moroso® Ultra Series distributor components. The balanced brass rotor tip and form staked carbon ball on the coil lug have been designed to eliminate grounding paths and cross firing.
Individual Cylinder Timing Drive
Available in either series, Jesel’s ICT timing systems provide a simple and accurate cam sync source for engines operating with an electronic fuel injection system. This drive is setup to use a 3/8-24 non-magnetic pickup (not supplied) which picks up the cam position off a rare earth magnet embedded in the external rotor. The pickup can be indexed every 60° for ideal wire routing.
Belt Drive Accessories
External Dust Covers
These covers shield the Camshaft Belt Drives from unwanted debris when used in adverse conditions such as off-road and dirt tracks. Available for a limited number of applications.
Distributor Plugs
Used to replace the stock distributor when running our belt driven Distributor Drives. These plugs are available for either wet or dry sump oiling systems.

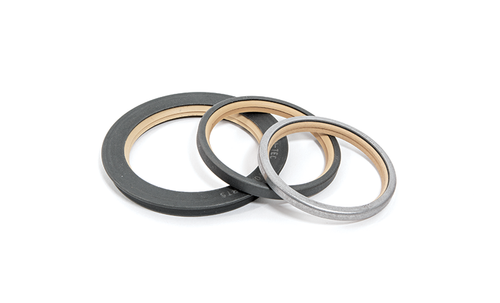

Dual Lip Seals
Available as a direct replacement for our standard cam and crank seals, these dual lip PTFE seals provide additional sealing for high vacuum applications. Ideal for engine builds that are trying to exceed vacuum readings over 20 in-Hg.
Zero Thrust Cam Adapters
Designed to reduce the amount of lifter-damaging camshaft endplay, these cam adapter assemblies are manufactured from through hardened tool steel and feature Torrington Needle thrust bearings. Certain block applications require machining.
Cam Timing Washer
This cam adapter washer provides a simple way to obtain a cam position signal when using electronic fuel injection. The washer can be rotated to work in conjunction with the user’s fabricated bracket and magnetic pickup.
